Place of Origin:
Shanghai
Brand Name:
CHASING
Certification:
CE
Model Number:
DSZL
Contact Us

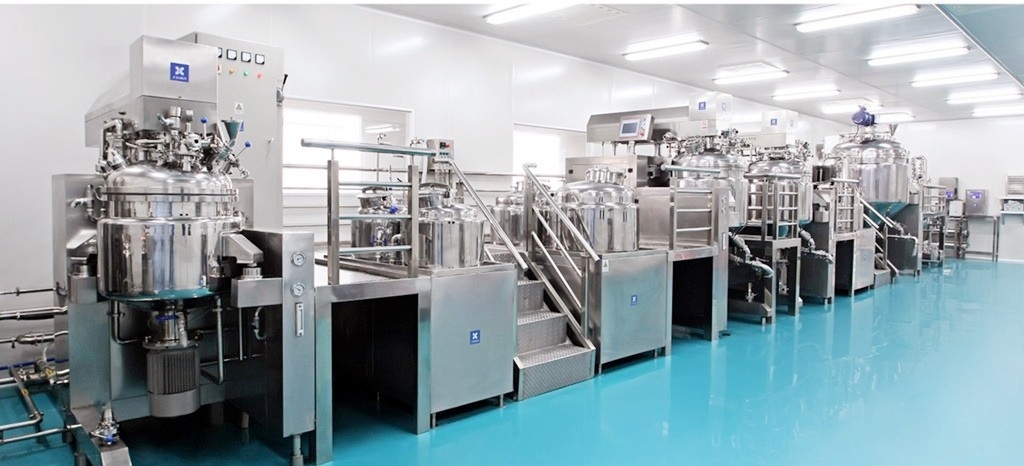

Advanced Cosmetic Mixing Equipment for Creams, Gels, Lotions, Shampoos, and Oils
Our plant offers manufacturing equipment designed to handle batch capacities ranging from 100 kg to over 10,000 kg, including machines specifically for ointment production.
Key Features:
Compliance and Safety: Equipment adheres to cGMP standards for safe cleaning and validation.
Vacuum Transfer: All material transfers are conducted under vacuum using transfer pumps to ensure contamination-free processes.
High Shear Emulsifier: The ointment mixer machine includes both inline and inbuilt high shear emulsifiers to meet specific production needs.
Control Panel Options: Available with both manual and automatic control panels, customizable to client requirements.
Cream Manufacturing Vessel: Features a top entry design with a semi-contra anchor stirrer equipped with stationary battles for optimal mixing.
Anchor Stirrer: Includes a boltless PTFE scraper for thorough product removal from vessel walls.
Hydraulic Lid Lifting: The top lid lifts completely with the anchor stirrer and is equipped with an interlock for safety.
Homogenization: Includes both inbuilt and offline high shear homogenizers, tailored to client specifications.
Model | Capacity | Homogeizer | Agitator | Vacuum | Heating | Cooling |
DSZL-10 | 10L | 0-6000 RPM | 0-64 RPM | -0.08 MPa | Electirc | City water/ Chiller water |
DSZL-20 | 20L | 0-6000 RPM | 0-64 RPM | -0.08 MPa | Electirc | City water/ Chiller water |
DSZL-50 | 50L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-100 | 100L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-200 | 200L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-300 | 300L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-500 | 500L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-1000 | 1000L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
DSZL-2000 | 2000L | 0-3600 RPM | 0-64 RPM | -0.08 MPa | Electirc or steam | City water/ Chiller water |
Applications:
Our equipment is designed for efficient production and seamless integration into various manufacturing processes, ensuring high-quality outcomes and operational flexibility.
RFQ
Q1: Are you a company? or a factory?
A1: We have a factory, our factory is at No.2399, Chuhua North Road, Fengxian District, Shanghai.
If you have time, you can visit our factory.
Q2: I am not in China; how can I know your quality?
A2: We have been manufacturing machinery for 28 years; we have a wealth of experience to help our customers do business better.
We know that there are many scammers on the Internet, but we have our own factory (not just a showroom). If you have some friends in China, we are happy to invite them to visit our factory. If you have time, we can show you our customers' factories. You can ask our customers how they feel when using our machines.
Q3: How is your price?
A3: We believe that price is not the only important thing, quality and technology are. Our goal is to help customers build
factories that can run for a long time.
Q4: I want to order the non- standard machine, is that OK?
A4: We welcome custom non-standard machines; we need to know more details about your requirements so that we can make the best
plan for you. We have the experience and capabilities of turnkey projects.
Q5: What else you can do for customers?
A5: We believe that we are in the same team with our customers to attain win-win. So we are not just a machinery producer, we can
provide a complete project, also we can help our customers to solve the problem.
