2200L Rotor Stator Homogenizer Emulsifier Mixer With High Shear

Homogenizer Emulsifier Mixer 2200L

injection rotor stator homogenizer

15 kW Homogenizer Emulsifier Mixer Chasing

Place of Origin:

Shanghai, China

Brand Name:

Chasing

Certification:

Model Number:

ZGF

Request A Quote

2200L Rotor Stator Homogenizer Emulsifier Mixer With High Shear

Product Details

Mixer Type:

Homogenizer

Barrel Volume (L):

2000

Max. Loading Volume (L):

2200 L

Range Of Spindle Speed(r.p.m):

1 - 3600 R.p.m

Weight (KG):

65 KG

Material:

SUS316L

Application:

Viscous Fluid, Medicine Processing, Chemicals Processing, Food Processing

Voltage:

3phases 200V/380V/415V/480V/600V

Dimension(L*W*H):

1000*400*1000mm

Power (kW):

15 KW

Dispersing Homogenizer Emulsifier Mixer Vacuum DSZL Inline Emulsifier Mixer

Get Best Price

High Shear Vacuum Homogenizer Mixer Bottom Liquid Soap Making Machine Cosmetic Cream

Get Best Price

Cosmetic Cream High Shear Homogenizer Mixer Bottom Inline Emulsifier Mixer

Get Best Price

Emulsifying Pump High Speed Homogenizer Food Grade Inline High Shear Homogenizer

Get Best Price

86-021-57451885

chasing@chasing.com.cn

Contact Now

Product Description

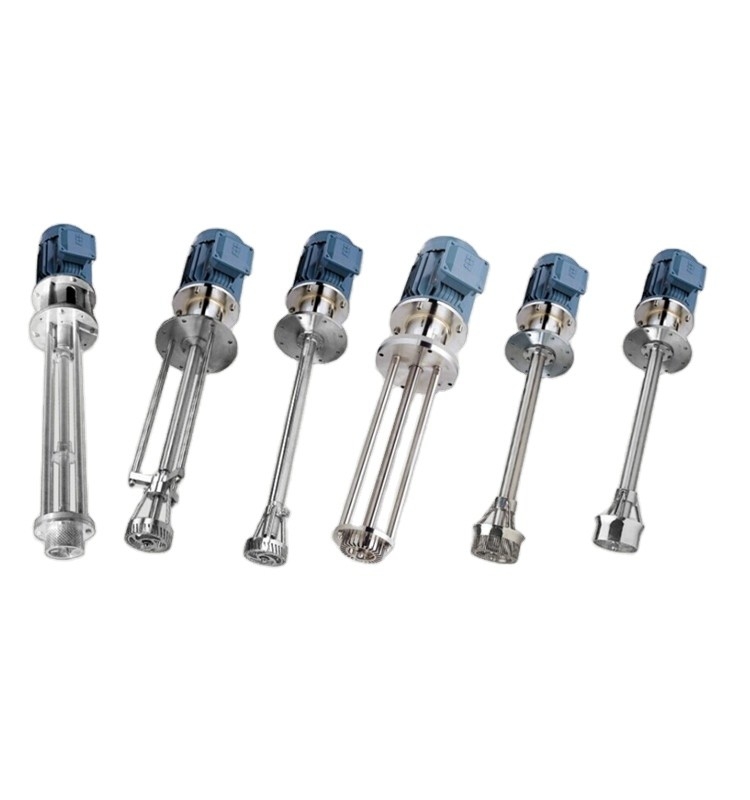

Shanghai Chasing injection Rotor Stator Homogenizer with high shear

SGF hydraulic rising high shear of Technical parameter

model	Power(kw/hp)power	lift height	emulsifying head diameter	rotating speed	mixing volume
SGF-4T	4	1000	140	1500	200-500
SGF-7.5T	7.5	1000	150	1500	400-900
SGF-11T	11	1000	160	1500	500-1500
SGF-15T	15	1000	180	1500	800-2200
SGF-18.5G	18.5	1000	200	1500	1000-2500
SGF-22T	22	1000	240	1500	1200-3000

2200L Rotor Stator Homogenizer Emulsifier Mixer With High Shear 2

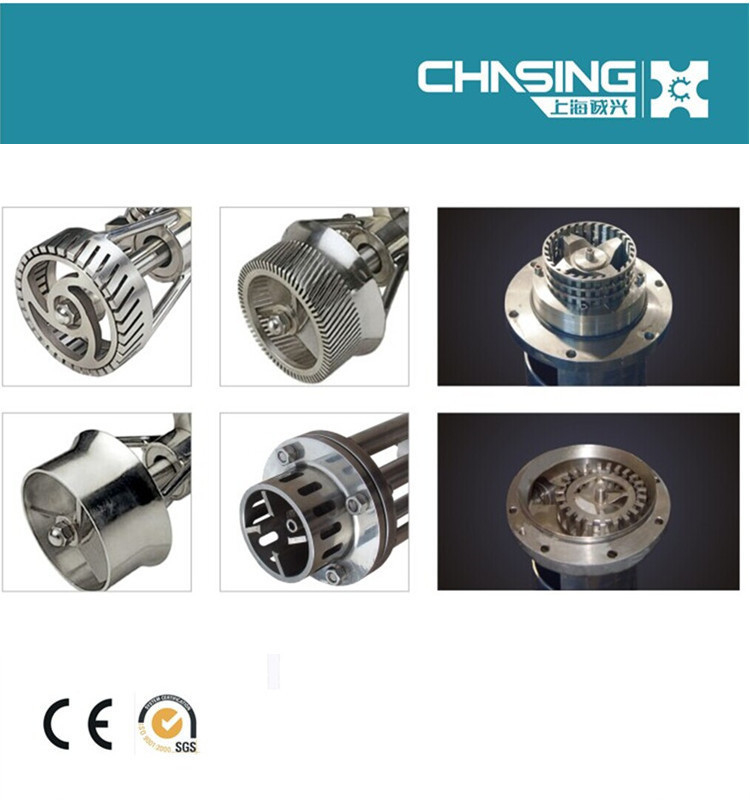

High shear homogenizing emulsifier

Principle:The materials willbe processed in the narrow space between stator and rotor by high tangential speed and strong energy of motion respectively produced by fast-turning rotor and high frequency mechanical effect. By the operation of intensively shearing, centrifugally extruding ,impacting and breaking, liquid layer attrition and even turbulence,the materials of solid phase, liquid phase and gas phase that cannot dissolve will be refined ,dispersed and emulsifierd.

2200L Rotor Stator Homogenizer Emulsifier Mixer With High Shear 4
