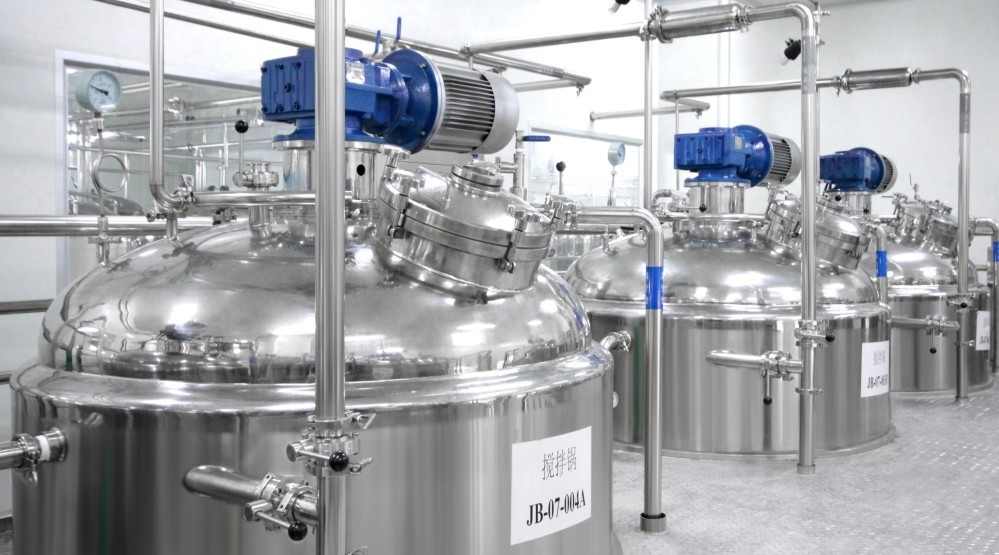

ELK-Vacuum Liquid Detergent Mixing Tank With Homogenizer Option
Brief Description
Vacuum homogeneous emulsifier is non-standard customized equipment, allocating reasonably according to customers' process requirements, which applies to products that need to be emulsified and blended. It's also used to emulsify and blend high viscosity products with low speed wall scrap.
The emulsifier is suitable to disperse, emulsify, homogenize and blend materials combined with high shear emulsifier. It can be widely used and strongly controllable with optional device like feeding system, discharge system, temperature control system, vacuum system, PH On-line measurement and control system, CIP system etc. It also can be customized into sanitary class, used for producing and pilotscale experiment in pharmacy,food and cosmetic industry.

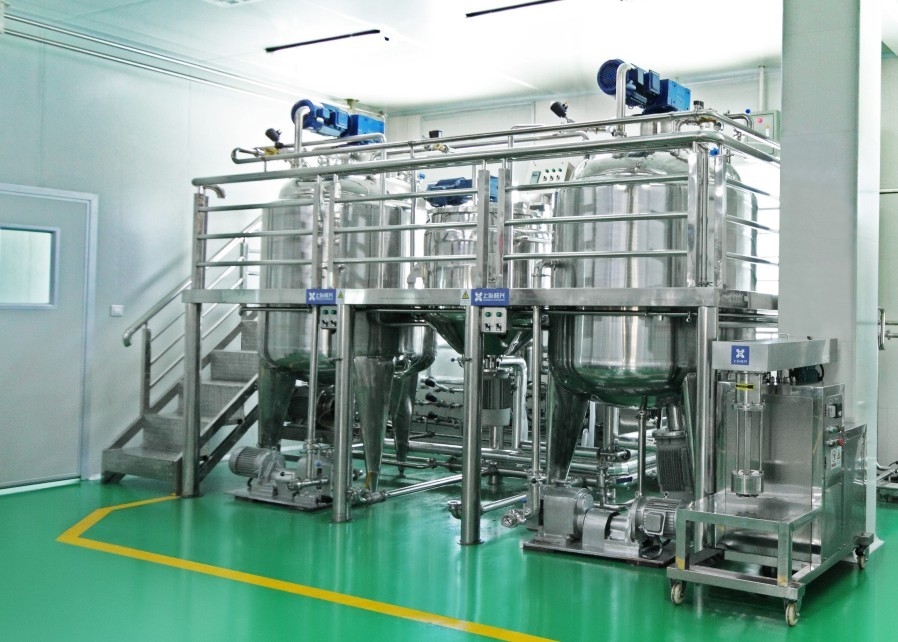

As specified equipment to produce high-end cream, medicinal ointment and emulsion, the complete sets of equipment consist of homogenized emulsifier main pot, water pot, oil pot, vacuum system, electric or steam heating system and electric system etc.It is suitable to produce high end shampoo, hair conditioner, laundry detergent, liquid soap, lotion and other detergent.
| Working volume |
Homogenizer
Power
|
Slow mixer power |
Vacuum pump power |
| 200L |
4 |
2.2 |
2.2 |
| 500L |
7.5 |
4 |
2.2 |
| 1000L |
11 |
7.5 |
4 |
| 1500L |
11 |
7.5 |
4 |
| 2000L |
11 |
7.5 |
5.5 |
| 3000L |
18.5 |
11 |
7.5 |
| 5000L |
22 |
15 |
11 |
| 10000L |
30 |
22 |
15 |
Working principle
With high-precision processing technology and high collaboration between rotor and stator, the powerful motor rotates in high speed and generates vacuum room between rotor and stator, then the materials(AES) are sucked from the top and bottom of rotor and stator. The materials will be processed between stator and rotor by high tangential speed caused by strong momentum, after the operation of intensive shearing, centrifugally extruding, impacting and breaking, liquid layer attrition, with the impact of various force, which can generate strong turbulence. The material will eventually become stable emulsion after a certain time repeat depolymerization, dispersion, homogenization, refinement and shearing with moderate emulsifier and mature technology.
